Details
Go beyond city limits and find new adventures. The new Explore E+ gives you the power to ride farther with a powerful new motor and longer range. Smooth suspension and larger tires make it a highly capable trekker for smooth roads, gravel or dirt.
KEY PERFORMANCE FACTORS
Smooth ride quality
ALUXX aluminum frameset and new SyncDrive Pro 2 motor combine for confident, stable handling and quick acceleration on all types of roads from hills to flats.
Route finding info
RideDash EVO full-color display with on-board navigation helps riders find their way. Smartphone connectivity makes it easy to keep the battery charged.
Longer Range
EnergyPak 800 battery with 800Wh of power gives riders the freedom to ride farther.
RANGE:
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds, or excessive climbs.
ENERGYPAK 800 / SYNCDRIVE PRO 2
Range:
- Extreme: 43 miles
- Good: 86 miles
- Ideal: 155 miles
TECHS & FEATURES
ENERGYPAK
Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.
ENERGYPAK PLUS
This range extender can boost total capacity by 250Wh. It has all the latest technologies combined with an up-to-date design that fits a select number of bikes. It has smart technology so it automatically turns on when your battery loses power, giving you peace of mind that you can reach your destination.
HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural, and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems, and SyncDrive motor.
RIDECONTROL ERGO 2
This new control unit is optimized for city and trekking bikes that don’t have front derailleur or dropper seatpost levers on the handlebar. It’s optimized for ergonomics, with larger buttons that are easy to reach. LEDs indicating battery level and support mode make it a standalone control unit that doesn’t require a display. A smaller 6mm connector makes it possible to have internal handlebar cable routing.
RIDEDASH EVO
The RideDash EVO is completely revised for 2021. It has a sportier outlook with a full-color display and graphics showing new functionalities to enhance the E-bike riding experience. It has handlebar/stem integration options and a reliable, wired connection. The low-profile screen shows ride information including speed, distance, battery range and Navigation, heart rate and fitness require the app to be connected.
SMART ASSIST
All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

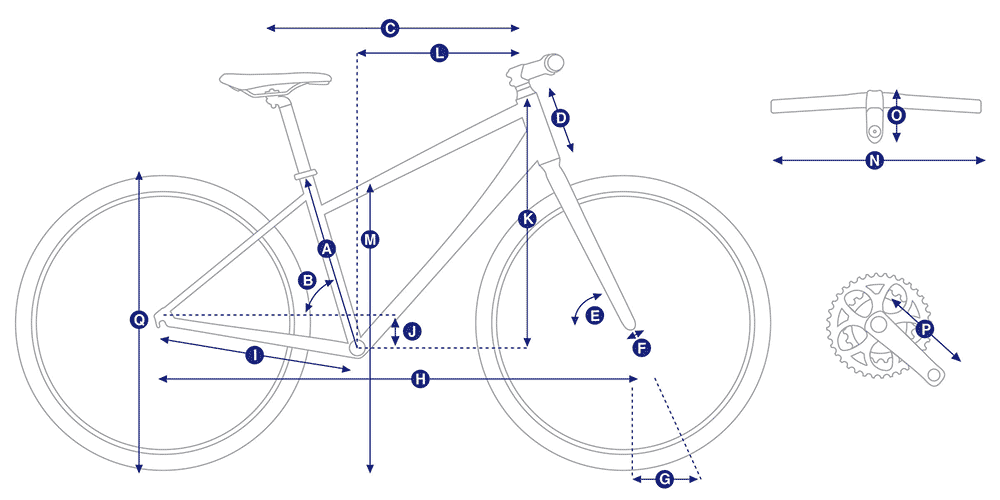

Medium | Large | X-Large | ||
---|---|---|---|---|
A | SEAT TUBE LENGTH (mm) | 435 | 485 | 535 |
B | SEAT TUBE ANGLE | 73.0° | 73.0° | 73.0° |
C | TOP TUBE LENGTH (mm) | 600 | 610 | 630 |
D | HEAD TUBE LENGTH (mm) | 140 | 155 | 170 |
E | HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° |
F | FORK RAKE (mm) | 51 | 51 | 51 |
G | TRAIL (mm) | 84 | 84 | 84 |
H | WHEELBASE (mm) | 1144 | 1155 | 1176 |
I | CHAIN STAY LENGTH (mm) | 470 | 470 | 470 |
J | BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 |
K | STACK (mm) | 668 | 682 | 696 |
L | REACH (mm) | 396 | 401 | 417 |
M | STAND OVER HEIGHT (mm) | 759 | 793 | 824 |
N | HANDLEBAR WIDTH (mm) | 690 | 690 | 690 |
O | STEM LENGTH (mm) | 80 | 100 | 100 |
P | CRANK LENGTH (mm) | 170 | 170 | 170 |
Q | WHEEL SIZE | 29" | 29" | 29" |
Medium | 5’7” - 5’10” |
---|---|
Large | 5’9” - 6’1” |
X-Large | 6’0” - 6’4” |
Specs
Frame | ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount |
---|---|
Fork | SR Suntour XCR34 Air Boost, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle |
Rims | eX25, Tubeless Ready, 622x25 Aluminum |
Hubs | Giant eTracker, [F] 110x15 [R] 148x12 |
Spokes | Stainless steel, e-bike optimized |
Tires | Crosscut Gravel 1, 700x57c, Foldable, Tubeless Ready |
Crankset | Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring |
Shifters | Shimano Deore, LinkGlide |
Rear Derailleur | Shimano Deore LinkGlide, 10-speed, Shadow+ |
Cassette/Freewheel | Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed |
Chain | Shimano LinkGlide, CN-LG500 |
Brakes | Shimano BR-MT410, hydraulic disc, 180mm |
Brake Levers | Shimano Deore |
Handlebars | Giant Contour Comfort Riser 31.8x690mm |
Tape/Grips | Gant Connect Ergo Max Cork w/bar-end |
Stem | Giant Contour EVO integrated 16° (S/M:80mm L/XL/XXL 100mm) |
Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
Saddle | Selle Royal Vivo Ergo Moderate Unisex |
Pedals | Aluminum Platform |
Accessories & Extras | KSA40 direct mount kickstand, Recon E HL100 StVZO [F] AXA NYX 6-12V E-bike tail light with brake sensor [R], MIK HD rack. System bag & basket compatible, Aluminum Fenders |
Motor | Giant SyncDrive Pro 2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology |
Battery | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604) |
Controller/Display | Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 support levels, USB-C (10W) / Giant RideDash EVO, high-angle visibility, 3" full color LCD display, on-board navigation |
Charger | Giant EnergyPak 6A smart charger, 60% charge in 3:00h |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Truffle / Medium | 04712878813434 | 2303717155 | |
Truffle / Large | 04712878813441 | 2303717157 | 210000016773 |
