Details

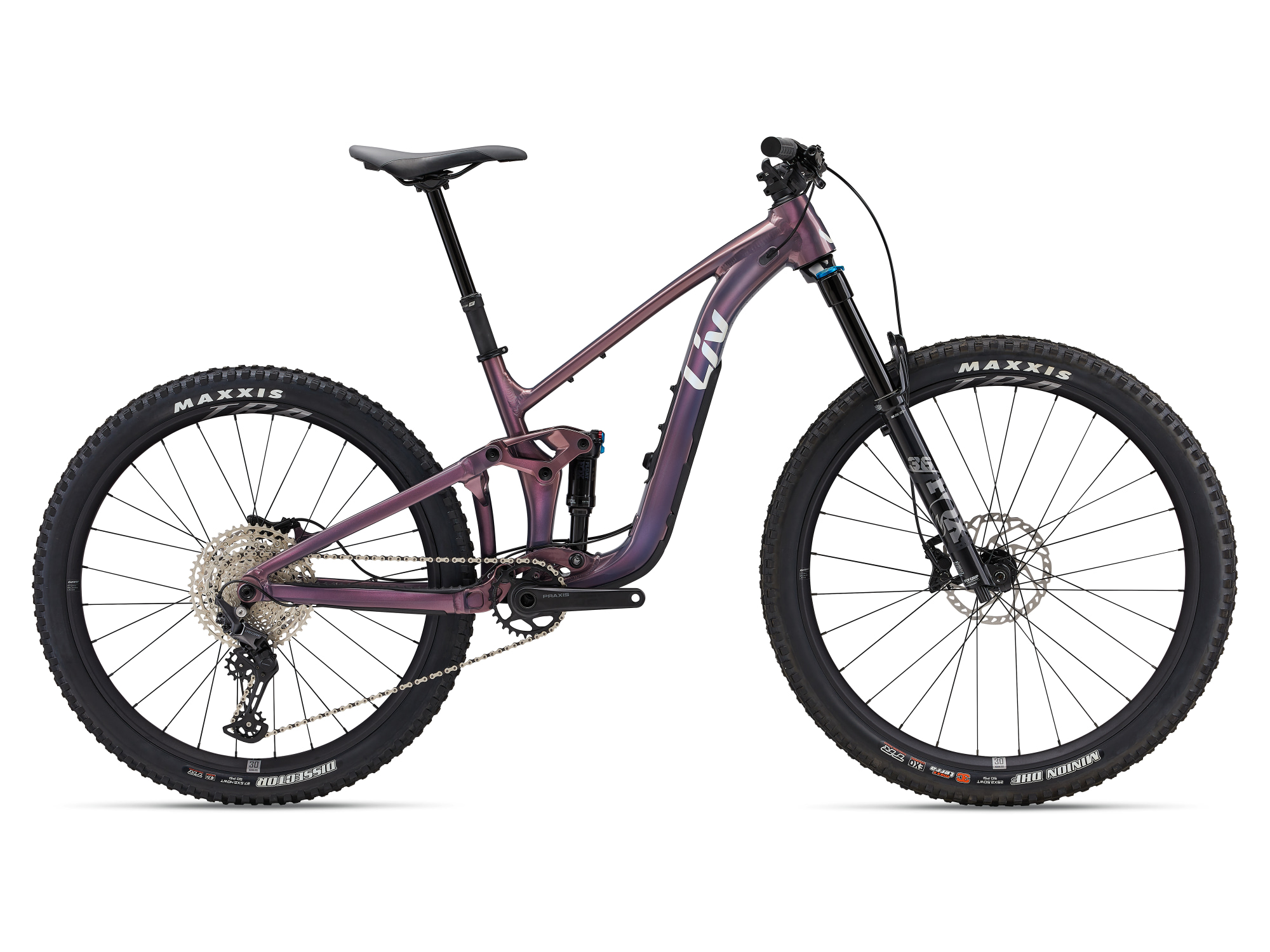

The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Performance Mid Travel Trail
Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
Size | XS | S | M | L |
---|---|---|---|---|
LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH |
SEAT TUBE LENGTH | 370 mm | 14.6 in | 390 mm | 15.4 in | 420 mm | 16.5 in | 450 mm | 17.7 in |
SEAT POST INSERTION DEPTH | 240 mm | 9.4 in | 260 mm | 10.2 in | 290 mm | 11.4 in | 320 mm | 12.6 in |
SEAT TUBE ANGLE | 76.2° | 76.6° | 76.9° | 76.2° | 76.6° | 76.9° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
TOP TUBE LENGTH | 548 mm | 21.6 in | 547 mm | 21.5 in | 564 mm | 22.2 in | 563 mm | 22.2 in |
HEAD TUBE LENGTH | 95 mm | 3.7 in | 100 mm | 3.9 in | 105 mm | 4.1 in | 110 mm | 4.3 in |
HEAD TUBE ANGLE | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
FORK RAKE | 44 mm | 1.7 in | 44 mm | 1.7 in | 44 mm | 1.7 in | 44 mm | 1.7 in |
TRAIL | 134.2 mm | 5.3 in | 134.1 mm | 5.3 in | 134.1 mm | 5.3 in | 131.3 mm | 5.2 in |
WHEELBASE | 1159mm | 45.6 in 1159 mm | 45.6 in1158 mm | 45.6 in | 1176 mm | 46.3 in1176 mm | 46.3 in1175 mm | 46.3 in | 1202 mm | 47.3 in1201 mm | 47.3 in1201 mm | 47.3 in | 1224 mm | 48.2 in1224 mm | 48.2 in1223 mm | 48.1 in |
CHAIN STAY LENGTH | 440 mm | 17.3 in 439 mm | 17.3 in 438 mm | 17.2 in | 440 mm | 17.3 in 439 mm | 17.3 in438 mm | 17.2 in | 440 mm | 17.3 in 439 mm | 17.3 in438 mm | 17.2 in | 440 mm | 17.3 in 439 mm | 17.3 in438 mm | 17.2 in |
BOTTOM BRACKET DROP | 25 mm | 1 in 20 mm | 0.8 in15 mm | 0.6 in | 25 mm | 1 in 20 mm | 0.8 in15 mm | 0.6 in | 40 mm | 1.6 in35 mm | 1.4 in30 mm | 1.2 in | 40 mm | 1.6 in35 mm | 1.4 in30 mm | 1.2 in |
STACK | 615 mm | 24.2 in613 mm | 24.1 in610 mm | 24 in | 620 mm | 24.4 in617 mm | 24.3 in614 mm | 24.2 in | 621 mm | 24.4 in619 mm | 24.4 in616 mm | 24.3 in | 626 mm | 24.6 in623 mm | 24.5 in620 mm | 24.4 in |
REACH | 397 mm | 15.6in401 mm | 15.8 in405 mm | 15.9 in | 620 mm | 16.2 in617 mm | 16.3 in 614 mm | 16.5 in | 621 mm | 17.2 in 619 mm | 17.3 in616 mm | 17.5 in | 626 mm | 18 in 623 mm | 18.1 in620 mm | 18.3 in |
STAND OVER HEIGHT | 730 mm | 28.7 in734 mm | 28.9 in738 mm | 29.1 in | 733 mm | 28.9 in737 mm | 29 in742 mm | 29.2 in | 745 mm | 29.3 in749 mm | 29.5 in754 mm | 29.7 in | 767 mm | 30.2 in771 mm | 30.4 in776 mm | 30.6 in |
HANDLEBAR WIDTH | 760 mm | 29.9 in | 760 mm | 29.9 in | 760 mm | 29.9 in | 780 mm | 30.7 in |
STEM LENGTH | 40 mm | 1.6 in | 50 mm | 2.0 in | 50 mm | 2.0 in | 50 mm | 2.0 in |
CRANK LENGTH | 165 mm | 6.5 in | 170 mm | 6.7 in | 170 mm | 6.7 in | 170 mm | 6.7 in |
WHEEL SIZE | 29" | 29" | 29" | 29" |
Specs
Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 Kabolt X, tapered, 44mm offset |
---|---|
Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed |
Rims | Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
Stem | Giant Contact SL, 35mm XS: 40mm, S/M/L: 50mm |
Chain | KMC X12 |
Frame | ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage |
Tires | [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless XS/S: [R] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless M/L: [R] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless |
Brakes | Shimano BR-MT420, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm |
Saddle | Liv Sylvia |
Spokes | Sapim Race j-bend |
Crankset | Praxis Cadet HD M24 Boost, 30t, 55mm chainline XS: 165mm, S/M/L: 170mm |
Seatpost | Giant Contact Switch AT, adjustable dropper, remote XS/S: 140-170mm travel / 30.9 x 470mm M/L: 170-200mm travel / 30.9 x 530mm |
Shifters | Shimano Deore, 1x12 |
Handlebars | Giant Contact TR35, 20mm rise, alloy XS/S/M: 760mm, L: 780mm |
Rear Shock | Fox Float Performance, 185x52.5, custom tuned for Liv |
Tape/Grips | Liv Tactal Pro single lock-on |
Brake Levers | Shimano BL-MT401 |
Bottom Bracket | Praxis, press fit |
Rear Derailleur | Shimano Deore, Shadow + |
Front Derailleur | N/A |
Accessories & Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size, integrated down tube storage bag |
Cassette/Freewheel | Shimano Deore M6100, 10x51 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Desert Dawn / X-Small | 4712878967847 | 1059008103 |
Desert Dawn / Medium | 4712878967861 | 1059008105 |
Desert Dawn / Large | 4712878967878 | 1059008107 |
