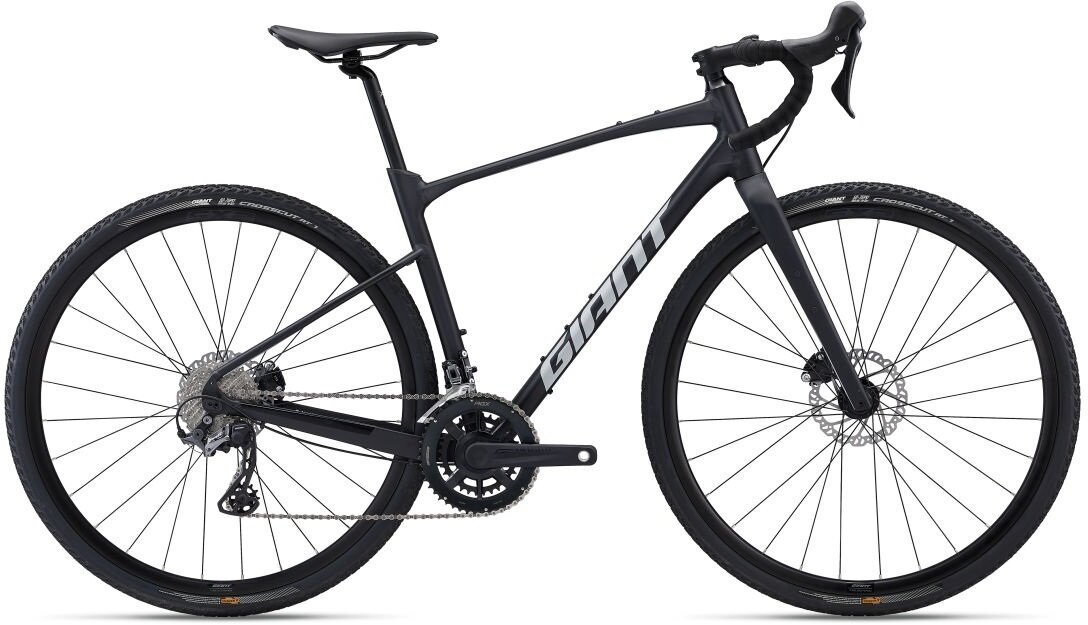

Giant Revolt 0
$2,599.00
Details
The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.
Specs
| Frame | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|---|---|
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Rims | Giant S-X2 Disc wheelset |
| Hubs | Giant S-X2 Disc wheelset |
| Spokes | Giant S-X2 Disc wheelset |
| Tires | Giant CrossCut AT 1, 700x38c, tubeless |
| Crankset | Praxis Alba 2D, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Praxis M24, press fit |
| Chain | KMC X11 with Missing Link |
| Rear Cog(s) | Shimano 105, 11x34 |
| Handlebars | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Stem | Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Saddle | Giant Approach |
| Seat Post | Giant D-Fuse, alloy, 14mm offset |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| Other | tubeless prepared, 53mm max tire size in "long" flip chip position, 42mm max tire size in "short" flip chip position |
* Subject to change without notice.
